Equipment

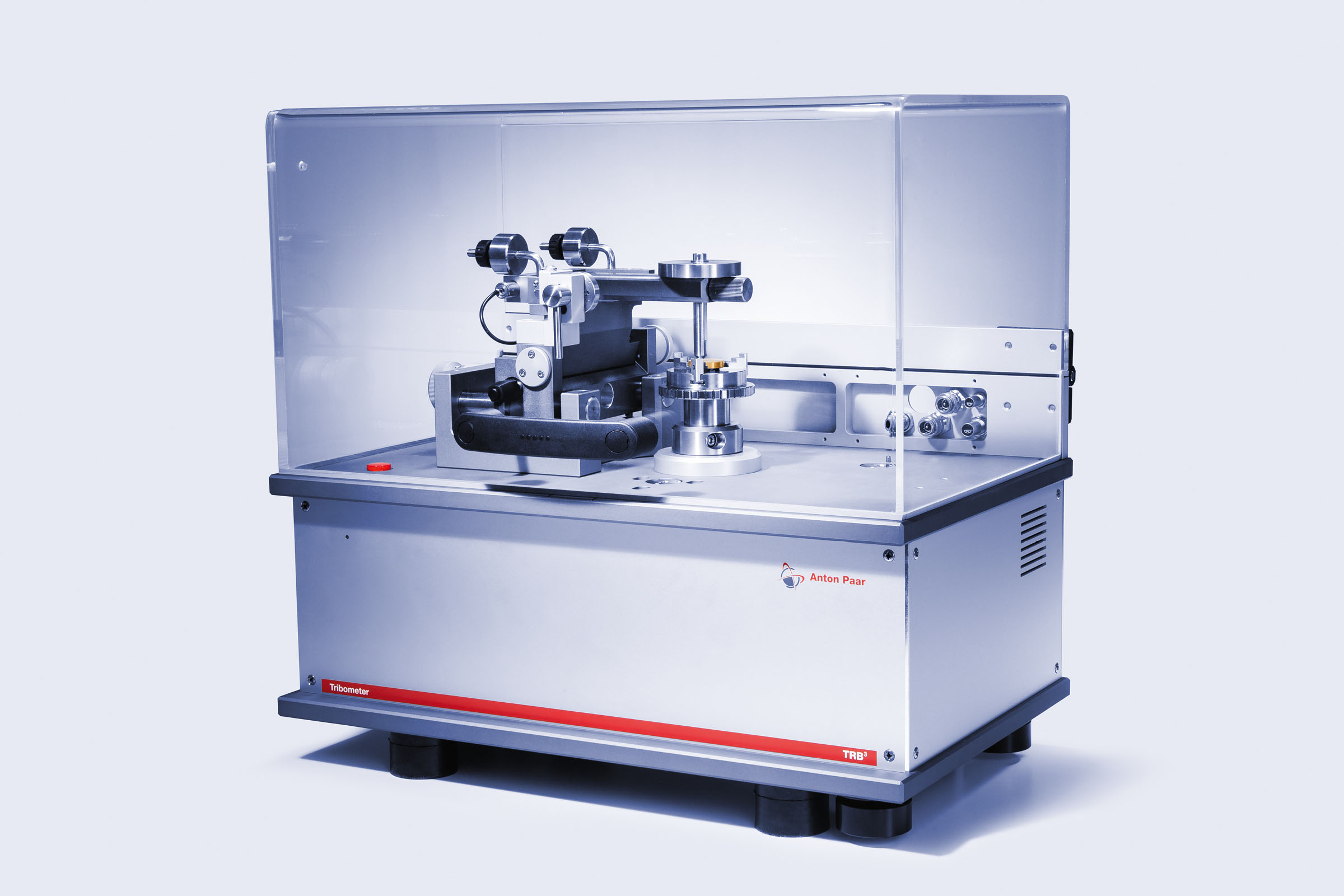

Available Geometries:

Rotational Module

• Speed: 0.2 rpm to 600 rpm
• Radius: Up to 40 mm
• Maximum Torque: 450 mN-m

Linear Reciprocating Module

• Stroke Length: Up to 60 mm
• Speed: Up to 370 mm/s
• Frequency: 0.01 Hz to 10 Hz

Rotational Reciprocating Module

• Speed: 0.2 rpm to 600 rpm
• Frequency: 0.01 Hz to 7 Hz
• Angular Amplitude: ±5° to ±150°
• Angular Resolution: 0.1°

Technical Specifications:

• Normal Force: Up to 60 N
• Friction Force Range: Up to 20 N
• Friction Force Resolution: 0.06 mN

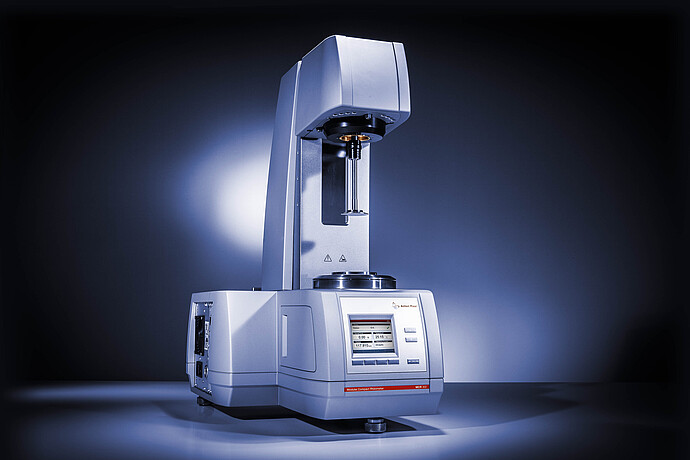

Available Geometries:

• Parallel Plate: 50 mm, 25 mm
• Double Gap: 42 mm
• Cone: 50 mm, 1 degree

Technical Specifications:

• Torque: 0.5 nNm to 230 mNm
• Angular Deflection: 0.05 µrad to ∞
• Angular Velocity: 0 rad/s to 314 rad/s
• Angular Frequency: 10 ^-7 rad/s to 628 rad/s
• Maximum Frequency: 100 Hz
• Normal Force: -50 N to 50 N
• Temperature: 5°C to 200°C

Technical Specifications:

• Resolution: 3 nm at 30 kV
• Magnification: 13-1,000,000x in Resolution Mode at 30kV (4x Min. Magnification in Fish Eye Mode)
• Accelerating Voltage: 200 V to 30 kV
• Electron Gun: Tungsten Heated Cathode
• Probe Current: 1 pA to 2 μA
• Chamber: Internal Diameter = 230mm, Number of Ports = 11, Door Width = 148 mm
• Chamber Vacuum: < 1×10-2 Pa
• Column Vacuum: < 1×10-2 Pa

Technical Specifications:

1010E Potentiostat

• Max Applied Current: ±1 A
• Maximum Applied Potential: ±12 V
• EIS: 10 μHz – 2 MHz

RDE710 Rotating Electrode

• Max. Continuous Torque: 28.3 mN-m
• Slew Rate: 300,000 RPM/sec
• Bandwidth: > 50 Hz, -1 dB
